Speedway Motors 28-Inch Double Pass Aluminum Radiator Compatible with SBF and Mopar Engines, High-Performance 2-Row 1-Inch Tube Design with Billet Filler Neck

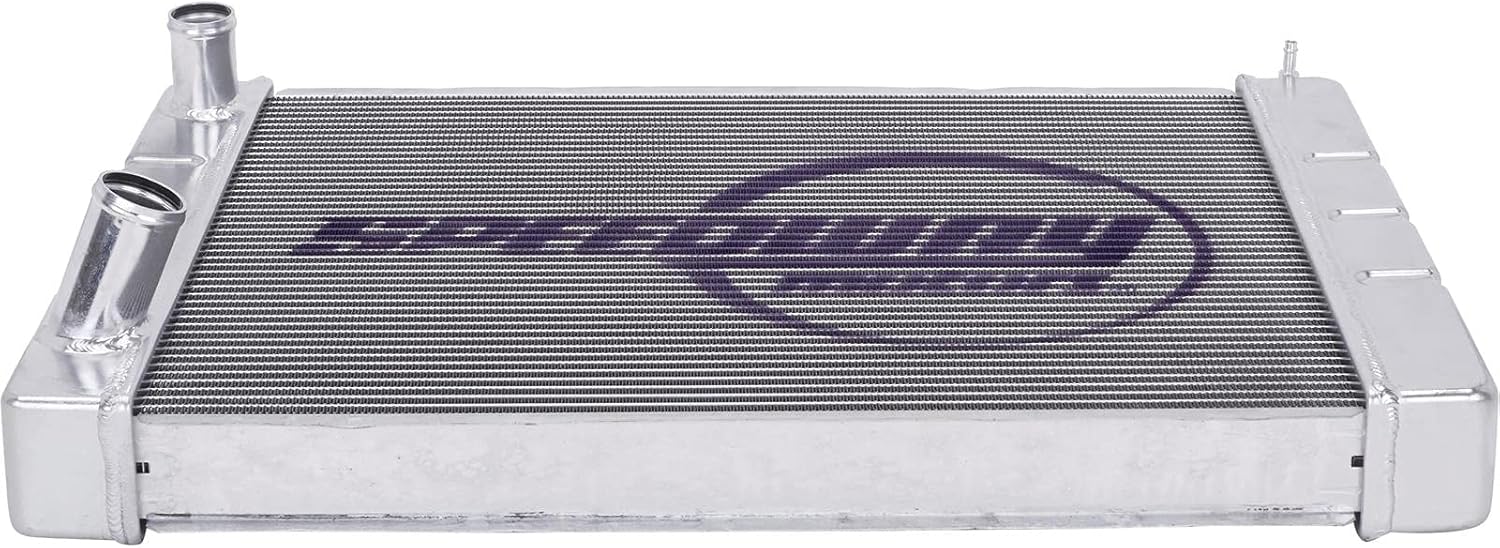

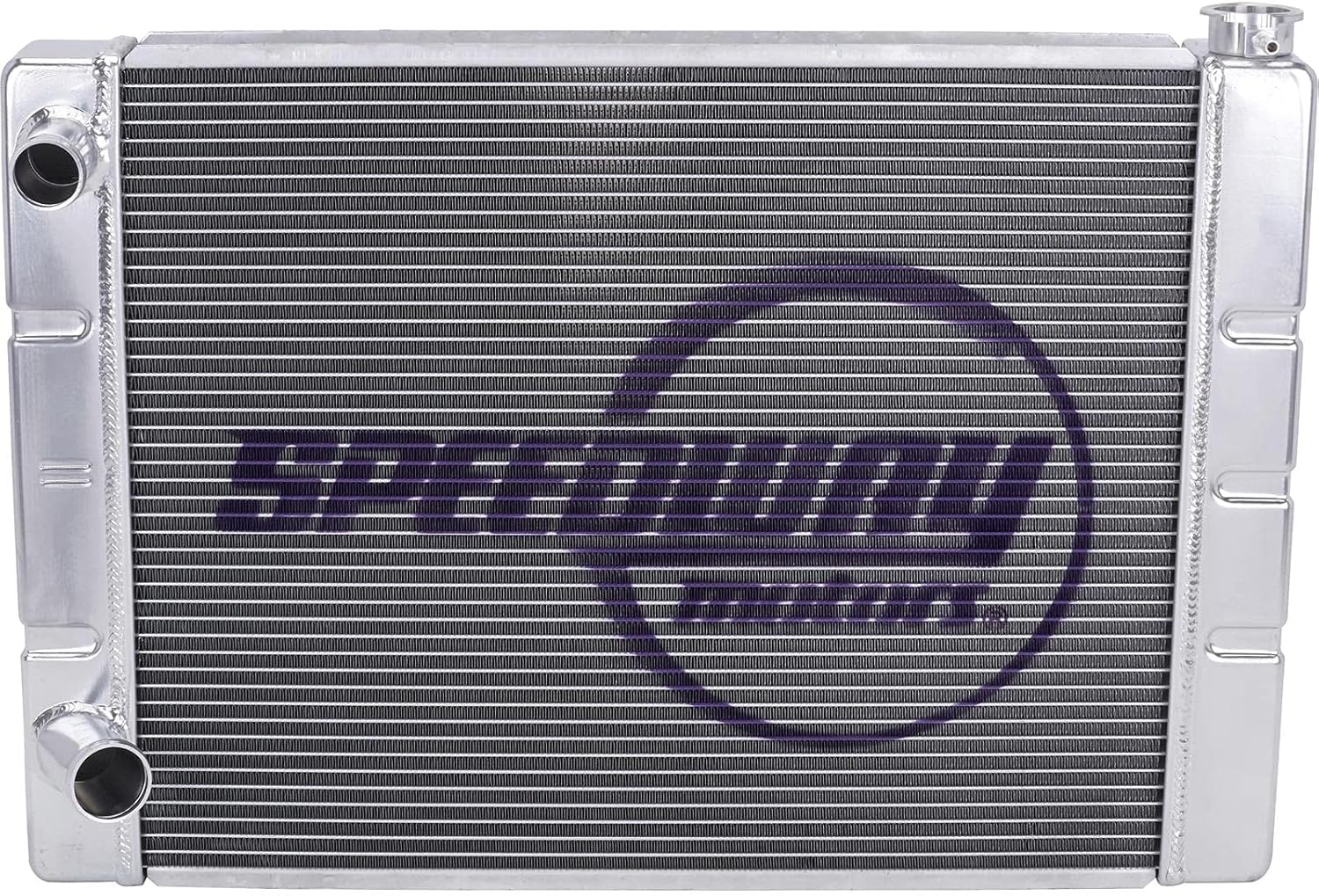

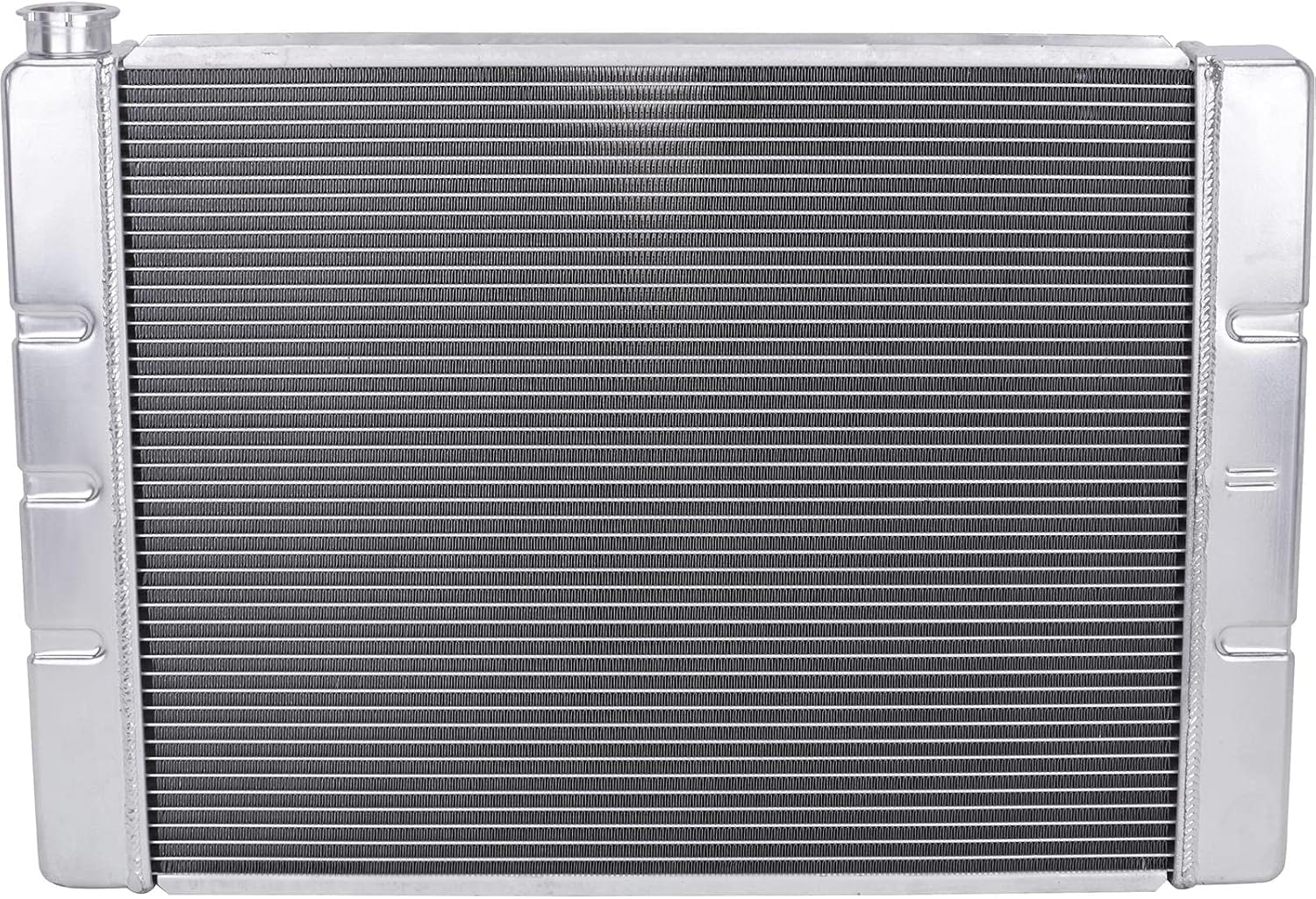

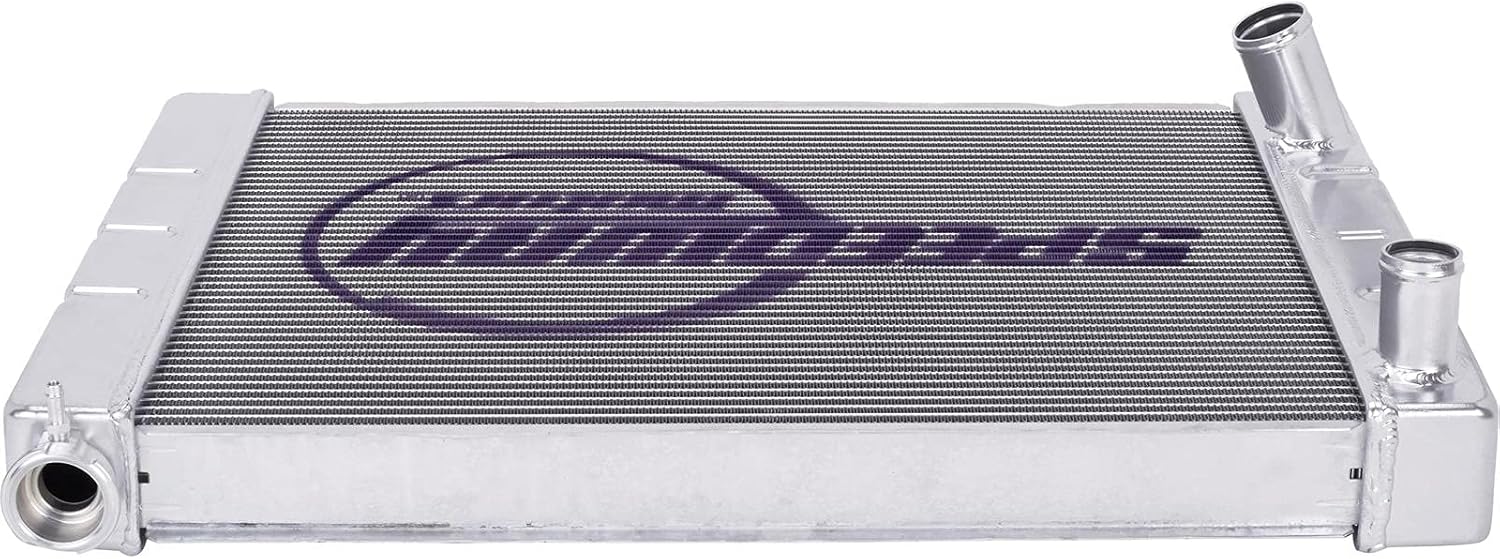

A premium build quality, lightweight, aluminum performance radiator for any budget. Furnace-brazed construction is more durable than epoxy and gasket construction. Doulbe pass styleCompatible with Ford/Compatible with Mopar 1.5-inch driver side upper inlet, and 1.75-inch driver side lower outlet. Two rows of 1-inch aluminum tubes cool better than 5 rows of traditional copper tubes. Double pass design lowers coolant temperatures 10-20 degrees with 2.25-inch core. Dense fin structure improves airflow and adds rigidity to radiator core. Billet aluminum filler neck guarantees a long-lasting seal under high pressures. Widths (outside tank-to-outside tank) of 22, 24, 26, 28, or 31-inch available. All radiator widths are 19 inches tall to fit a variety of street and race applications. Efficient, yet simple single-pass crossflow design with 2.25-inch core thickness. Basic design for DIY universal fit applications, with the focus on engine cooling. Radiator mounting brackets, insulators, radiator cap, and shroud sold separately. Performance Under Pressure, Lap After Lap, Mile After Mile Our line of universal crossflow aluminum Compatible with Chevy radiators makes it easy for budget-minded racers to get a professional-quality, no compromises aluminum racing radiator. Constructed of lightweight, 100 percent aluminum, each radiator assembly is fully furnace brazed for maximum durability and performance. Unlike lower cost or OEM radiators, there are no epoxy and gaskets used in the radiator’s construction here! Epoxy acts as an insulator, causing radiators to heat unevenly, and this stress combined with the vibration from racing can cause epoxy seals to crack and leak or separate over time. Furnace brazing minimizes fatigue from the rapid heating and cooling cycles

• High-Performance Cooling Efficiency: Double-pass aluminum radiator lowers coolant temperature by 10–20°F, providing superior heat dissipation for racing or high-performance street builds.
• Premium Aluminum Construction: Fully furnace-brazed design eliminates weak epoxy joints, ensuring consistent heat transfer, strength, and long-lasting reliability under demanding conditions.
• Advanced 2-Row Core Design: Features two rows of 1-inch aluminum tubes with a dense fin structure that cools more effectively than traditional 5-row copper radiators.

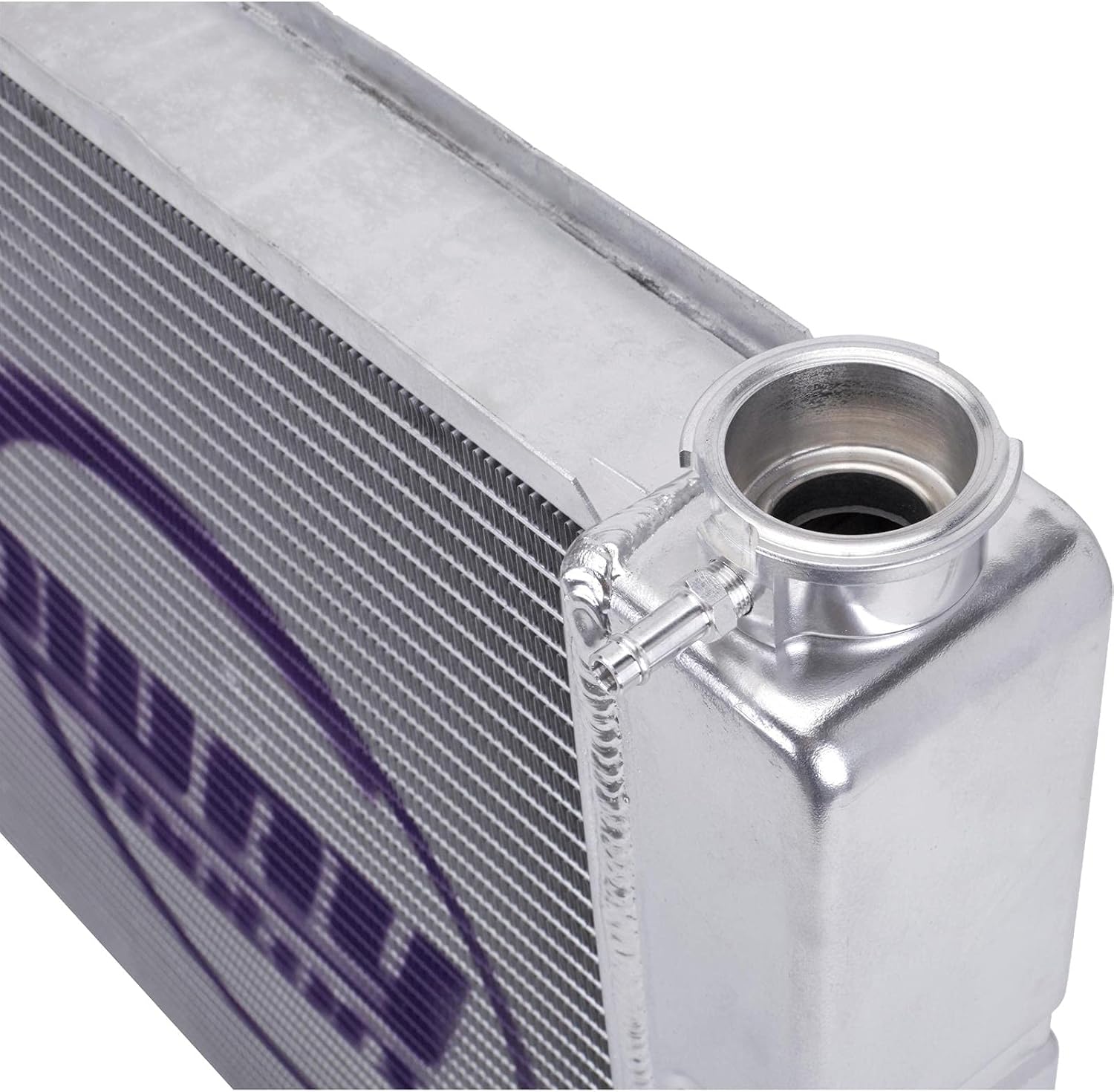

• Billet Filler Neck and Quality Fitment: CNC-machined billet aluminum filler neck offers a secure, leak-free seal; 1.5-inch driver-side inlet and 1.75-inch driver-side outlet for Compatible with Ford/Compatible with Mopar layouts.
• Universal Application Options: 28-inch width and 19-inch height fit a wide range of custom, muscle car, and street rod projects; compatible with optional shrouds and fan kits for total cooling control.
